400G OSFP-RHS DR4 500m
$594.00

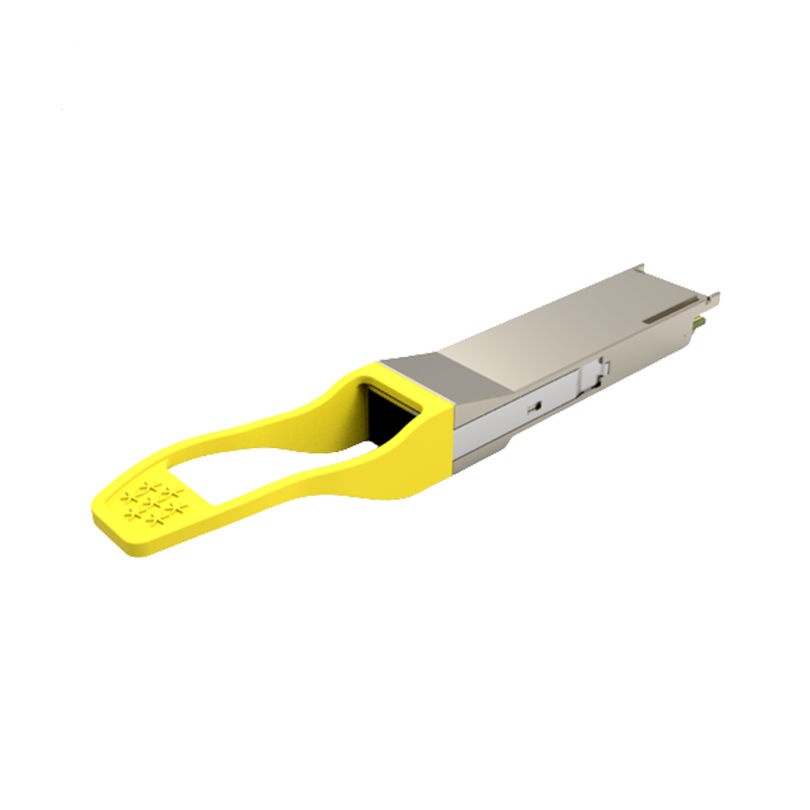

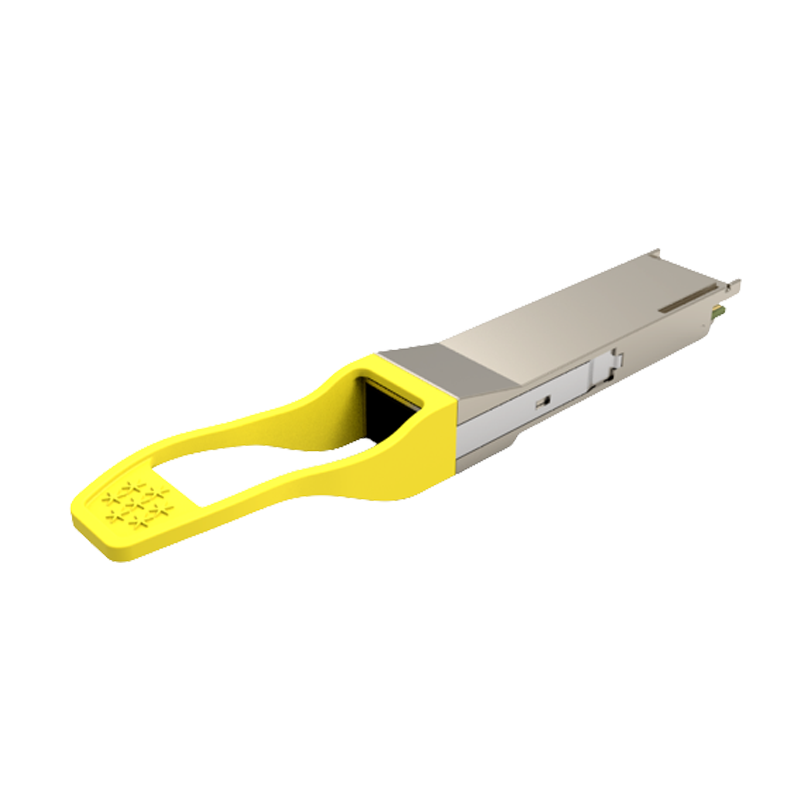

400G OSFP-RHS DR4 Silicon Optical Module is a hot-pluggable optical transceiver module based on Silicon Photonics Integration Technology, designed for data center 400GBASE-DR4 Ethernet links. It adopts 100G PAM4 and 4-channel single-mode parallel technology, supporting a maximum transmission distance of 500m.
Option
400G OSFP-RHS DR4 500m
Batch
Spot
Specifications
- Also known as
- 400G Optical Transceiver
- Model/Color
- Data Rate :400G Protocol :Ethernet Form Factor :QSFP112 Reach :0.5m-2km Media Type :SMF Wavelength: 1310nm Interface :MPO/MTP Application:Data Center
- Condition
- New
- Warranty
- 1095Days
- Net Weight
- 0.05kg
- Gross Weight
- 0.10kg
- Package Dimensions
- 0*0*0mm
- Free Shipping
- No
- Utilizes hot-pluggable OSFP-RHS form factor
- 4-channel full-duplex transceiver module
- Data rate up to 425Gbps
- Complies with OSFP MSA, IEEE 802.3bs 400GBASE-DR4, and CMIS Ethernet standards
- Maximum transmission distance of up to 500m over single-mode fiber (requires FEC enabled)
- MPO12 optical interface
- Embedded digital diagnostics capabilities
- Maximum power consumption <10W
- Commercial operating temperature range from 0 to 70 degrees Celsius
- Operating voltage of 3.3V
- Compliant with RoHS environmental standards (lead-free)
