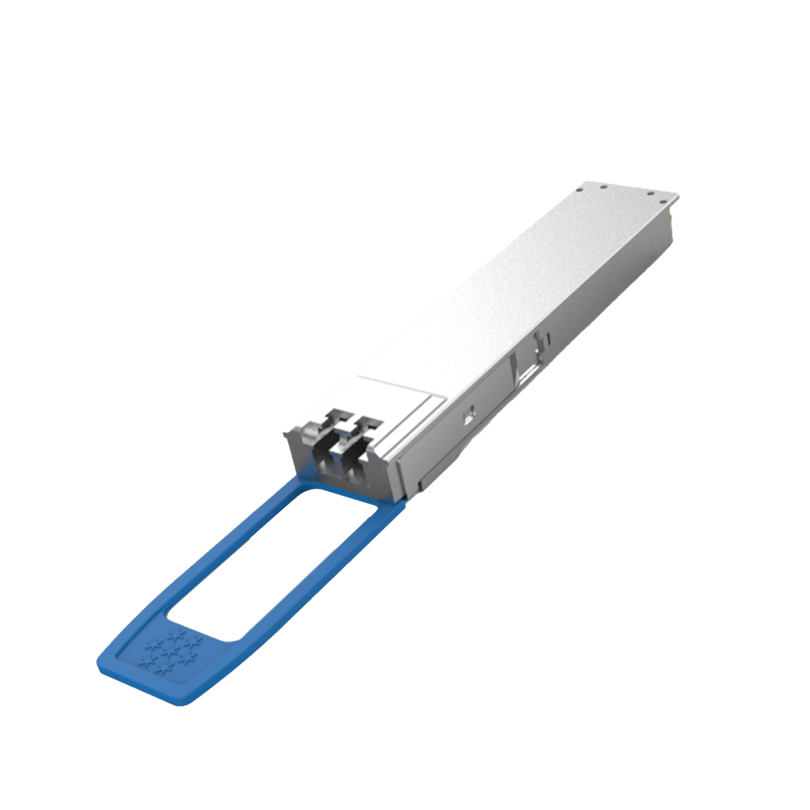

400G OSFP-RHS LR4 10KM
$1,217.00
400G OSFP-RHS LR4 EML CWDM4 is a hot-pluggable optical transceiver module designed for 400G Ethernet links in data centers. The module incorporates 4 independent channels on CWDM4 1271/1291/1311/1331nm center wavelength, operating at 100G per channel.Maximum link length of 10Km G.652 SMF with KP-FEC.
Option
400G OSFP-RHS LR4 10KM
Batch
Spot
Specifications
- Also known as
- 400G Optical Transceiver
- Model/Color
- Product Type ：Pluggable Optical Modules Application ：Data Center Data Rate ：400G Protocol ：Ethernet Form Factor ：OSFP Reach ：2km-20km Media Type ：SMF Wavelength ：CWDM Interface ：Dual LC
- Condition
- New
- Warranty
- 1095Days
- Net Weight
- 0.05kg
- Gross Weight
- 0.10kg
- Package Dimensions
- 0*0*0mm
- Free Shipping
- No
- 4-channel Full-duplex transceiver integrated module in OSFP hot-pluggable package
- Data rate up to 425Gb/s
- Compliant with OSFP MSA, CMIS 4.0 and IEEE 400GBASE-LR4 Ethernet transport protocols
- Maximum link length of 10Km G.652 SMF with KP-FEC
- Duplex LC connector
- Power consumption less than 10W
- Commercial grade operating temperature range from 0°C to +70°C
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
