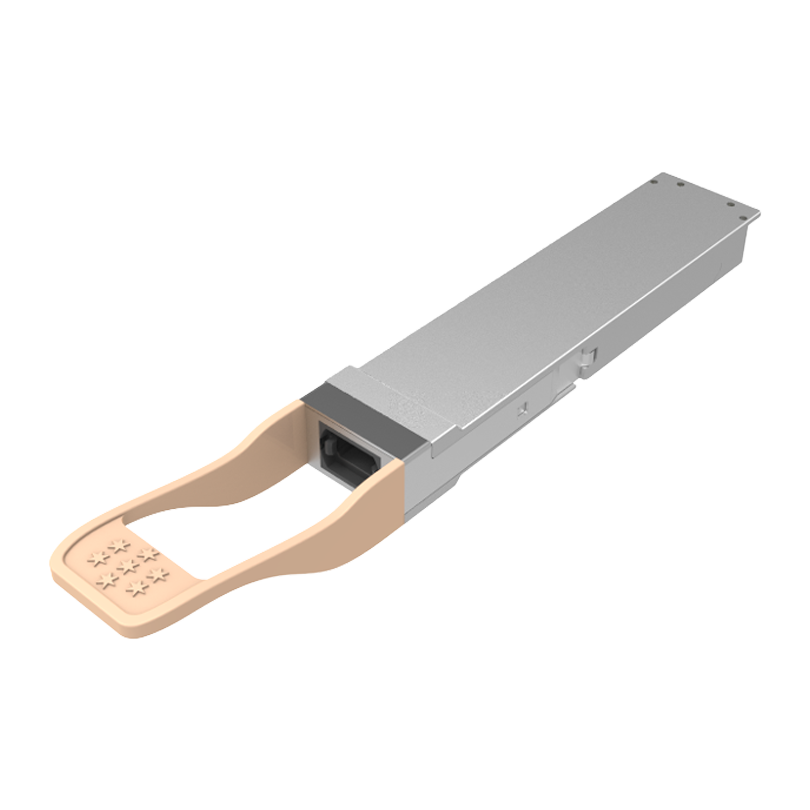

400G OSFP112-RHS SR4 100m
400G OSFP-RHS SR4 is a hot-pluggable optical transceiver module designed for 400G Ethernet links in data centers. With 100G PAM4 and VCSEL technology, it can interconnect up to 425Gbps of data within 100m over 4 pairs of multimode fiber with FEC enabled.
Specifications
- Also known as
- 400G Optical Transceiver
- Condition
- New
- Warranty
- 1095Days
- Net Weight
- 0.05kg
- Gross Weight
- 0.10kg
- Package Dimensions
- 0*0*0mm
- Free Shipping
- No
4-channel Full-duplex transceiver integrated module in OSFP hot-pluggable package
4-channel 850nm VCSEL and PIN
Data rate up to 425Gb/s
Compliant with OSFP MSA, CMIS 4.0 and IEEE 400GBASE-SR4 Ethernet transport protocols
Transmission using 4 parallel pairs of multimode fiber at distances up to 60m (OM3 MMF) or 100m (OM4 MMF)
MPO12/APC optical interfaces
Power consumption less than 8W
Commercial grade operating temperature range
Power supply voltage 3.3V
Comply with RoHS environmental protection standard (lead-free)
