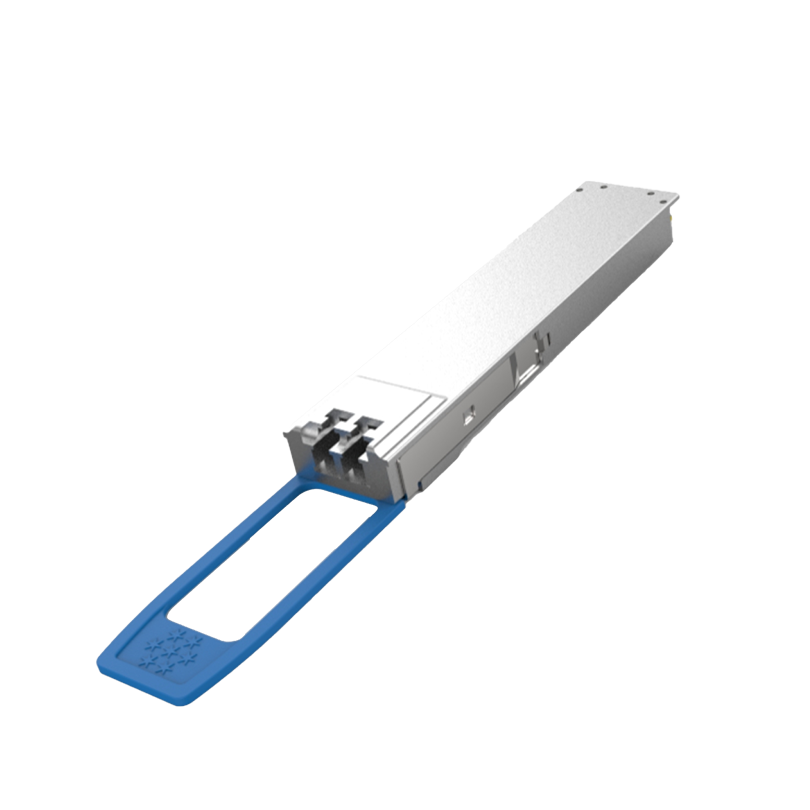

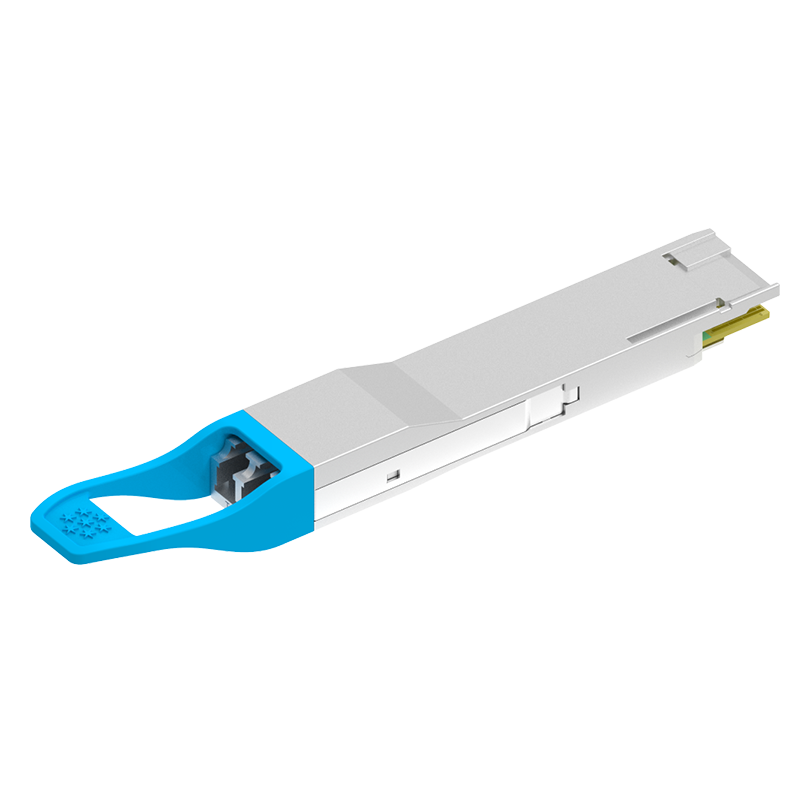

400G QSFP112 LR4 10km EML
400G QSFP112 LR4 optical transceiver is designed for long-reach data center interconnections. It complies with QSFP112 MSA, 400G-LR4 and IEEE 802.3ck 400GBASE-LR4.The module integrates 4-channel CWDM Mux/DeMux with central wavelengths at 1271nm, 1291nm, 1311nm and 1331nm. It supports transmission distances up to 10km over G.652 SMF with KP-FEC.
Specifications
- Also known as
- 400G Optical Transceiver
- Model/Color
- Product Type :Pluggable Optical Modules Application :Data Center Data Rate :400G Protocol :Ethernet Form Factor :QSFP112 Reach :2km-20km Media Type :SMF Wavelength :CWDM Interface:Dual LC
- Condition
- New
- Warranty
- 1095Days
- Net Weight
- 0.05kg
- Gross Weight
- 0.10kg
- Package Dimensions
- 0*0*0mm
- Free Shipping
- No
Full-duplex transceiver integrated module in QSFP112 hot-pluggable form factor
4-channel CWDM EML and PIN
The transmission rate per channel can reach up to 106.25Gbps (100G PAM4)
Compliant with QSFP112 MSA and 400G-LR4 specifications
Compatible with IEEE 802.3ck 400GBASE-LR4 Ethernet transmission protocol
Using 1 pair of single-mode optical fiber transmission, the distance can reach up to 10km with KP-FEC
Power consumption < 10W
Dual LC optical interface
Commercial grade operating temperature range
Power supply voltage 3.3V
Comply with RoHS environmental protection standard (lead-free)
