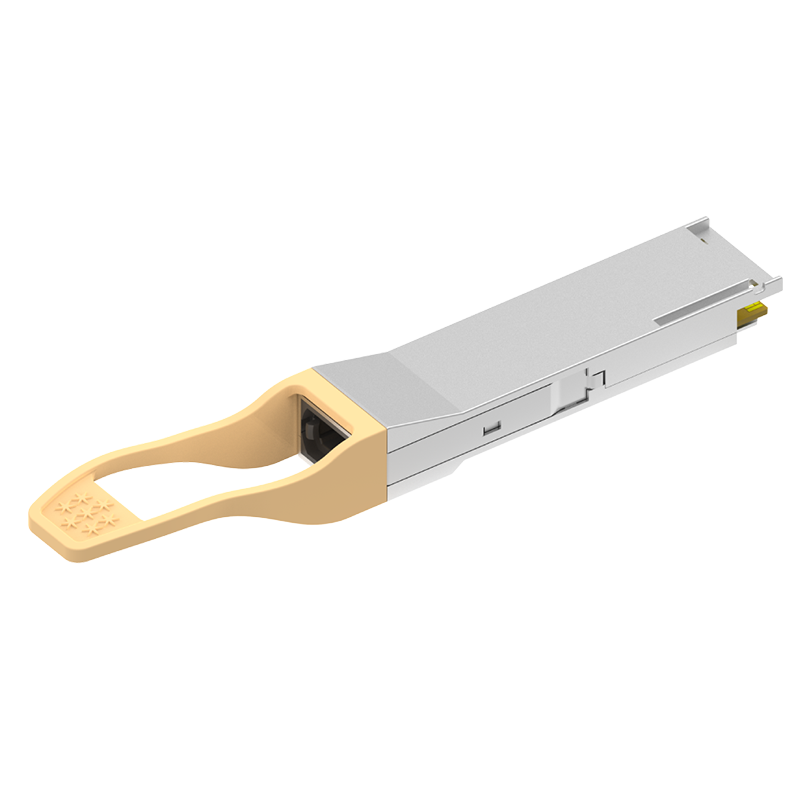

400G QSFP112 SR4 100m
400G QSFP112 SR4 is a hot-pluggable optical transceiver module, designed for 400G Ethernet links in data centers, using 100G PAM4 and VCSEL technology, under the premise that the system is enabled FEC, 425Gbps data interconnection within 100m can be achieved through 4 pairs of multimode fibers.
Specifications
- Also known as
- 400G Optical Transceiver
- Model/Color
- Product Type :Pluggable Optical Modules Application :Data Center Data Rate :400G Form Factor :QSFP112 Protocol :Ethernet Interface :MPO/MTP Reach :<2km Media Type :MMF Wavelength :850nm
- Condition
- New
- Warranty
- 1095Days
- Net Weight
- 0.05kg
- Gross Weight
- 0.10kg
- Package Dimensions
- 0*0*0mm
- Free Shipping
- No
Product Type :Pluggable Optical Modules
Application :Data Center
Data Rate :400G
Form Factor :QSFP112
Protocol :Ethernet
Interface :MPO/MTP
Reach :<2km
Media Type :MMF
Wavelength :850nm
Description
4-channel full-duplex transceiver module in QSFP112 hot-pluggable package
4 channels 850nm VCSEL and PIN
Transfer rates up to 425Gb/s
Complies with QSFP112 MSA and IEEE 802.3db Ethernet Transport Protocol
Transmission using 4 pairs of parallel multimode fibers over distances up to 100m (OM4 MMF)
Power consumption is less than 8W
MPO12 optical interface
Commercial-grade operating temperature range
The supply voltage is 3.3V
RoHS compliant (lead-free)
