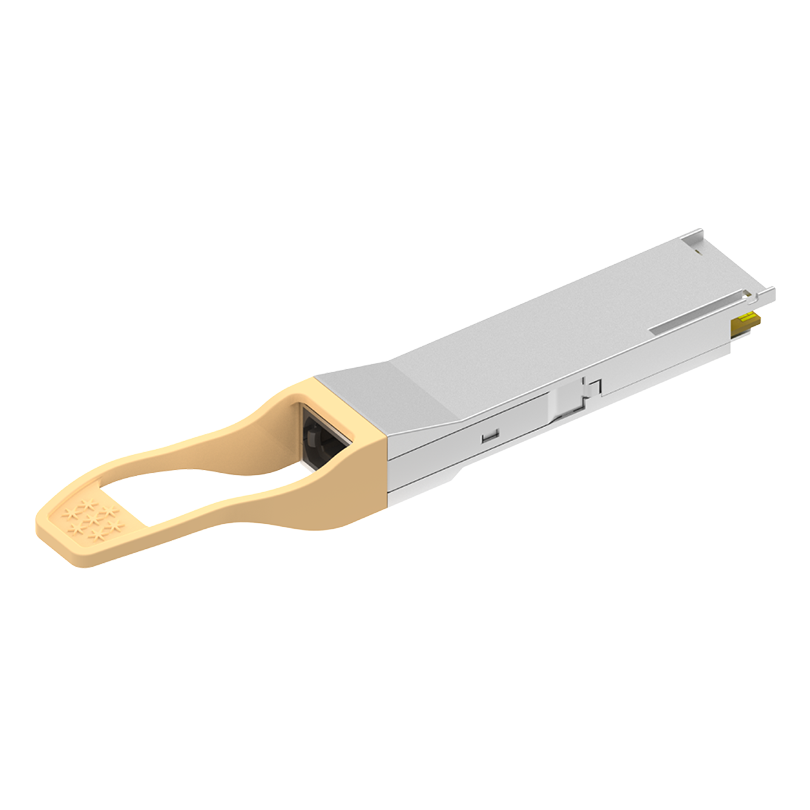

400G QSFP112 VR4 50m
400G QSFP112 VR4 is a hot-pluggable optical transceiver module designed for 400G Ethernet links in data centers. It uses 100G PAM4 and VCSEL technology to interconnect 425Gbps data within 50m.
Specifications
- Also known as
- 400G Optical Transceiver
- Model/Color
- Product Type ：Pluggable Optical Modules Application ：Data Center Data Rate ：400G Protocol ：Ethernet, InfiniBand Form Factor ：QSFP112 Reach ：＜500m Media Type ：MMF Wavelength ：850nm Interface ：MPO/MTP
- Condition
- New
- Warranty
- 1095Days
- Net Weight
- 0.05kg
- Gross Weight
- 0.10kg
- Package Dimensions
- 0*0*0mm
- Free Shipping
- No
Full-duplex transceiver integrated module in QSFP hot-pluggable package
4-channel 850nm VCSEL and PIN
Data rate up to 425Gb/s
Compliant with QSFP MSA, CMIS 4.0 and IEEE 400GBASE-VR4 Ethernet transport protocols
Transmission using 4 parallel pairs of multimode fiber at distances up to 30m (OM3 MMF) or 50m (OM4 MMF)
MPO12/APC optical interfaces
Power consumption less than 8W
Commercial grade operating temperature range
Power supply voltage 3.3V
Comply with RoHS environmental protection standard (lead-free)
