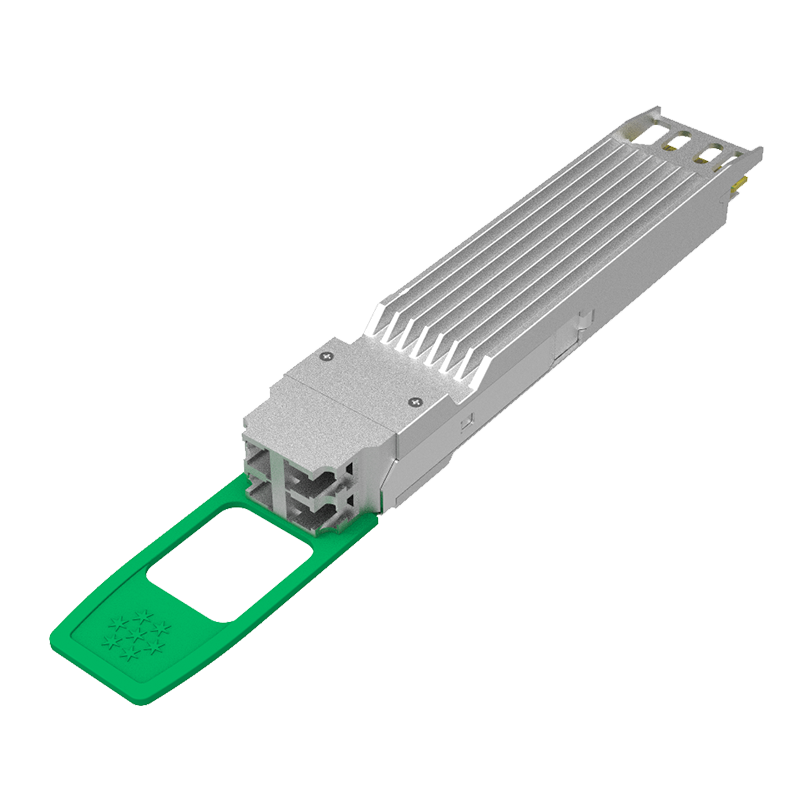

800G OSFP 2xFR4 2km
$1,217.00
800G OSFP 2×FR4 silicon photonics module is a hot-pluggable optical transceiver manufactured with silicon photonic integrated circuit technology.It is designed for 800GBASE-2×FR4 Ethernet links in data centers.Adopting 100G PAM4 and 2×4 single-mode parallel transmission, the module supports a maximum transmission distance of 2 km with KP-FEC.
Option
800G OSFP 2xFR4 2km
Batch
Spot
Specifications
- Also known as
- 800G Optical Transceiver
- Model/Color
- Product Type ：Pluggable Optical Modules Application ：Data Center Data Rate ：800G Protocol ：Ethernet Form Factor ：OSFP Reach ：<2km Media Type ：SMF Wavelength ：CWDM Interface ：Dual Duplex LC
- Condition
- New
- Warranty
- 1095Days
- Net Weight
- 0.05kg
- Gross Weight
- 0.10kg
- Package Dimensions
- 0*0*0mm
- Free Shipping
- No
Product Type ：Pluggable Optical Modules
Application ：Data Center
Data Rate ：800G
Protocol ：Ethernet
Form Factor ：OSFP
Reach ：<2km
Media Type ：SMF
Wavelength ：CWDM
Interface ：Dual Duplex LC
Description
- OSFP MSA and CMIS compliant
- 8×106.25Gbps (53.125GBd PAM4) electrical interface
- 8×106.25Gbps (53.125GBd PAM4) optics architecture
- Power consumption <16W
- Maximum link length of 2km G.652 SMF with KP-FEC
- Dual duplex LC receptacles
- Built-in digital diagnostic functions
- Operating case temperature 0℃ to +70℃
- 3.3V power supply voltage
- RoHS compliant
