800G OSFP-RHS SR8 100M
$812.00

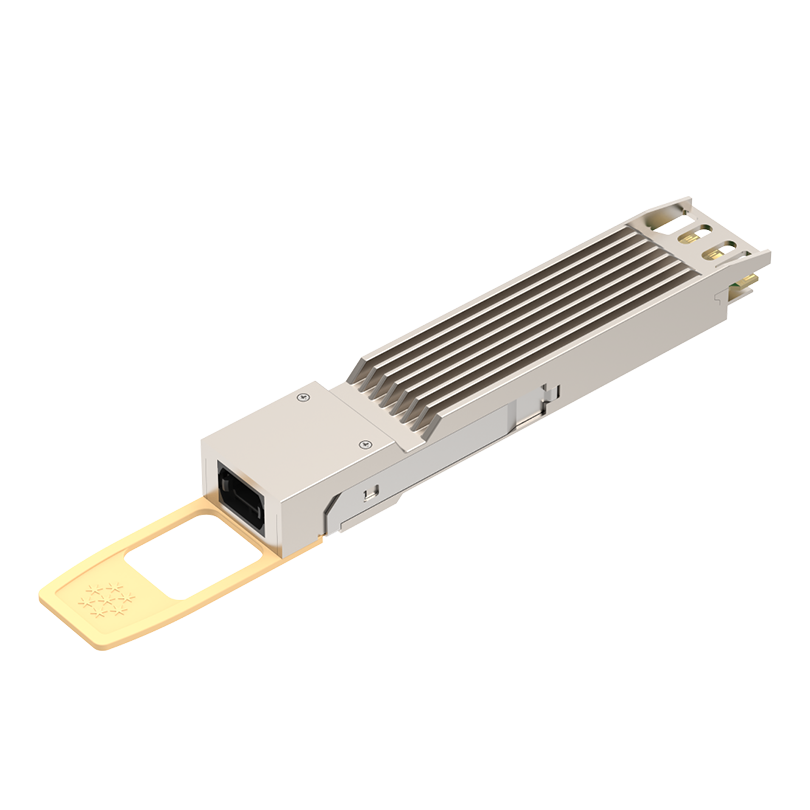

800G OSFP-RHS SR8 is a hot-pluggable optical transceiver module designed for 800G SR8 Ethernet links in data centers. It adopts 100G PAM4 and VCSEL technology and can realize 800G data exchange within 100m.
Option
800G OSFP-RHS SR8 100M
Batch
Spot
Specifications
- Also known as
- 800G Optical Transceiver
- Model/Color
- Product Type ：Pluggable Optical Modules Application ：Data Center Data Rate ：800G Protocol ：Ethernet, InfiniBand Form Factor ：OSFP-RHS Reach ：0.5m-2km Media Type ：MMF Wavelength ：850nm Interface ：MPO/MTP
- Condition
- New
- Warranty
- 1095Days
- Net Weight
- 0.05kg
- Gross Weight
- 0.10kg
- Package Dimensions
- 0*0*0mm
- Free Shipping
- No
Product Type ：Pluggable Optical Modules
Application ：Data Center
Data Rate ：800G
Protocol ：Ethernet, InfiniBand
Form Factor ：OSFP-RHS
Reach ：0.5m-2km
Media Type ：MMF
Wavelength ：850nm
Interface ：MPO/MTP
Description
- 8 channels full-duplex transceiver modules
- Transmission data rate up to 106.25G per channel
- 8x106.25Gbps PAM4 transmitter and PAM4 receiver
- 8 channels 850nm VCSEL array
- 8 channels PIN photo detector array
- Internal CDR circuits on both receiver and transmitter channels
- Power consumption <13.5W
- Hot Pluggable OSFP-RHS(Flat-top) form factor and Compliant with CMIS
- Maximum link length of 60m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
- Dual MPO12 APC connector receptacle
- Built-in digital diagnostic functions
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS compliant(lead free)
